When manufacturing parts or assembling components, ensuring fasteners sit flush with the work surface is critical for safety, aesthetics, and structural integrity. The two most common machining methods for achieving this are countersinking and counterboring.
While both processes enlarge the top of an existing hole so a screw head can sit flush or slightly below the surface, they are fundamentally different in shape, application, and the types of fasteners they accommodate. Here is a comprehensive breakdown of when to use each method and the best tools for the job.
Countersinking produces a conical-shaped enlargement at the top of a drilled hole. It is specifically designed to match the angled profile of flat head screws, allowing the head of the fastener to fully engage and sit perfectly flush with—or slightly below—the workpiece surface.
Beyond accommodating fasteners, shank-driven rotary countersink tools are highly versatile. Because of their angled cutting edges, they are frequently used in machining to remove burrs from drilled holes or to chamfer the sharp corners of a part.

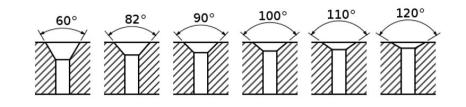

Standard Countersink Angles:
To ensure a secure fit, the countersink tool must perfectly match the screw's angle.
Most Common Angles: 60°, 82°, and 90°
Specialty Angles: 100°, 110°, and 120°
Counterboring enlarges the opening of a hole while producing a completely flat bottom. This cylindrical recess is designed to accommodate socket-head cap screws or fasteners with flat, cylindrical undersides.
Unlike the conical slope of a countersink, the flat bottom of a counterbored hole provides a secure, level seating surface. This is particularly advantageous when the assembly requires lock washers to prevent the fastener from backing out under vibration. While countersinks are highly versatile across different hole sizes and deburring applications, counterbores are typically purpose-built for a specific screw size and function.
| Feature | Countersink | Counterbore |
|---|---|---|
| Hole Profile | Conical (Angled slope) | Cylindrical (Flat bottom) |
| Compatible Fastener | Flat head screws | Socket-head cap screws |
| Primary Purpose | Flush seating for angled screw heads | Flush seating for flat-bottom screw heads |
| Secondary Uses | Deburring, chamfering corners | Creating seating for lock washers |
| Versatility | High (multiple uses per tool) | Low (typically single-purpose) |
Depending on your application, there are several distinct styles of countersink tools to choose from, each offering specific machining advantages:
Your choice entirely depends on the hardware specified for your assembly. If your design requires a flat head screw to maintain a smooth, aerodynamic, or snag-free exterior, you must countersink the hole at the correct matching angle. If your design relies on the high clamping force of a socket-head cap screw—especially if lock washers are necessary for a secure hold—you must counterbore the hole to provide a flat, stable seat.
